RÁM
Chrono 29 6061 Xtralite Alloy butted
VIDLICE
RockShox Judy Silver TK 29
PŘEVODY
1X12
VELIKOST RÁMU
M
PRŮMĚR KOL
29″

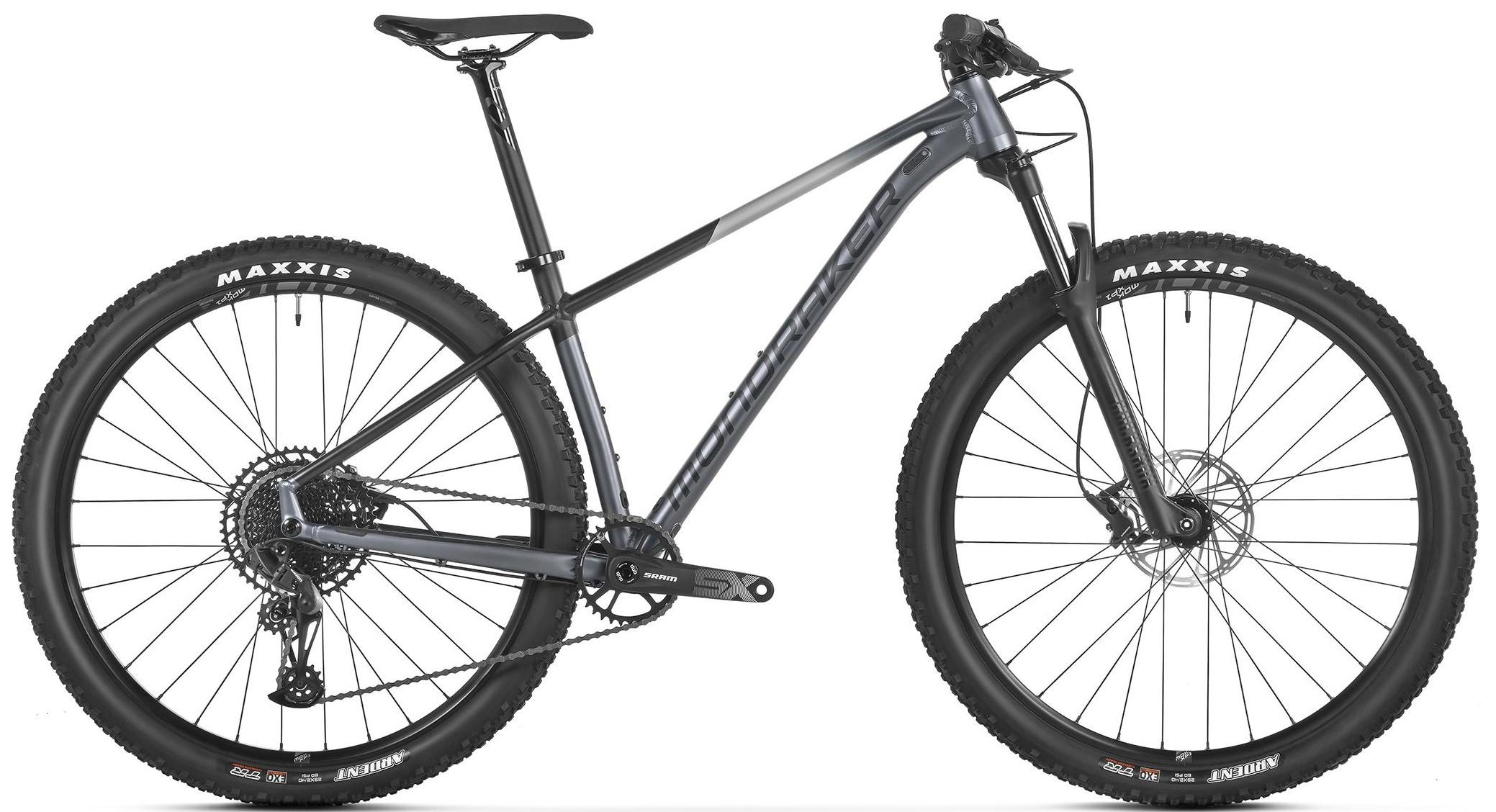

MONDRAKER CHRONO 29 bunker grey/flame red/vortex grey 2024
Technická specifikace

Rám
Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle

Velikosti
S: 395mm / M: 430mm / L: 470mm / XL: 520mm

Vidlice
RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 51mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload RockShox PopLoc

Hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45?x45?, bottom 51.9x40x8x45?x45?

Představec
Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7?, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Řídítka
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9? backsweep, 0? upsweep, 31.8mm barbore

Sedlo
Mondraker XC Series, steel rail

Sedlovka
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

Přední brzda
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Zadní brzda
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brzdové páčky
Sram Level, tooled reach adjust, lever pivot bushings

Ráfky
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

Dráty
CN round stainless steel

Přední náboj
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts

Zadní náboj
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub

Přední plášť
Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Zadní plášť
Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Kliky
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52

Středové složení
Sram DUB BSA, sealed bearings, 73mm

Převodník
34T, steel, X-Sync 2

Řetěz
Sram SX Eagle, 12s, Powerlock

Přehazovačka
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Řadící páčka
Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Kazeta
Sram PG-1210, 11-50T, 12s

Počet převodů
1X12

Patka přehazovačky
Mondraker M068

Hmotnost
13,6 Kg
Základní cena
35 999Kč
Kolo je vždy na míru.
Doplňky a sestavení se provádí po osobní konzultaci
Výrobce:
Skladem
